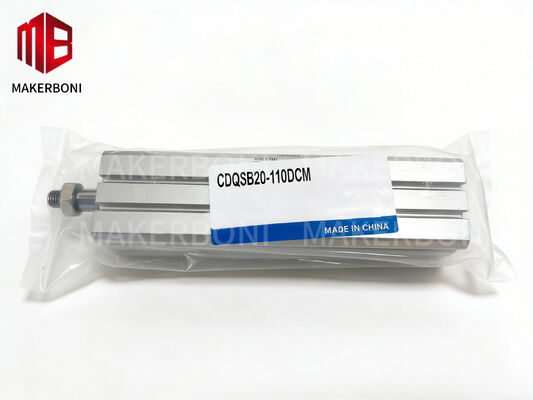

CQS Compact Cylinder with 110mm Stroke Double-Acting Magnetic Piston for Yin Auto Cutter Machine

Brand Name:	makerboni
MOQ:	1pcs
Price:	1-9999
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

china

Highlight:

110mm Stroke Compact Cylinder

Double-Acting CQS Cylinder

Magnetic Piston Actuator

Product Description

CDQSB20-110DCM Compact Cylinder for Yin Auto Cutter Machine | CQS Series

In the world of industrial automation, space is at a premium and reliability is non-negotiable. The CDQSB20-110DCM CQS Compact Cylinder is engineered to excel in these exact conditions. As a pivotal component for small-bore applications, this cylinder delivers robust performance in a space-saving design, making it the ideal choice for precision machinery like the Yin Auto Cutter Machine.

Product Features & Key Advantages

Core Features

Space-Saving Compact Design: Specifically engineered for small-bore applications where saving space is a primary concern, allowing for more efficient machine layout
Long-Stroke Durability: 110mm stroke model incorporates reinforced design with dedicated wear band and thicker piston for increased bearing demands and longevity
Versatile Switch Mounting: Magnetic switches can be mounted on three or four sides for flexible sensor integration and simplified position detection
Enhanced Side Load Capacity: Optional increased side load version available for demanding applications with higher moment or lateral forces
Universal Body Style: Consistent design across both switch-capable and non-switch-capable versions for easy upgrades and parts standardization

Key Advantages for Your Operation

Exceptional Suitability for Cutting Applications: Proven performance for Yin Auto Cutter Machine with precise, repeatable motion for clean cuts
Maximized Uptime: Durable construction minimizes wear and reduces maintenance needs for greater machine availability
Rapid Integration and Delivery: Standardized design with delivery within 10 hours supports quick assembly and reduces inventory costs
Global Logistics Support: Ready for worldwide deployment via reliable international express services

Technical Specifications

Parameter	Specification
Model	CDQSB20-110DCM
Series	CQS Compact Cylinder
Stroke Length	110 mm
Design Type	Double-Acting, Magnetic Piston
Switch Mounting	Capable (3 or 4-side mountable)
Key Feature	Long-stroke version with wear band & thicker piston
Special Option	Increased side load version available
Primary Application	Auto Cutter Machines (Especially suitable for Yin Cutter)

Why Choose the CDQSB20-110DCM?

The CDQSB20-110DCM stands out by combining compactness with uncompromised strength. Its thoughtful design for longer strokes prevents rod sagging and uneven wear, while versatile sensor mounting accelerates installation. For precision cutting applications in confined spaces, this cylinder provides reliable, durable, and space-conscious performance that ensures your machinery's motion core is built with components designed for the task.
