Spare Parts For Lectra
Created with Pixso. 124668 OEM-Specification Prismatic Rail with Dual Slide Block Configuration for Lectra MPH9 Cutter | Hardened Alloy Steel Linear Guide
124668 OEM-Specification Prismatic Rail with Dual Slide Block Configuration for Lectra MPH9 Cutter | Hardened Alloy Steel Linear Guide

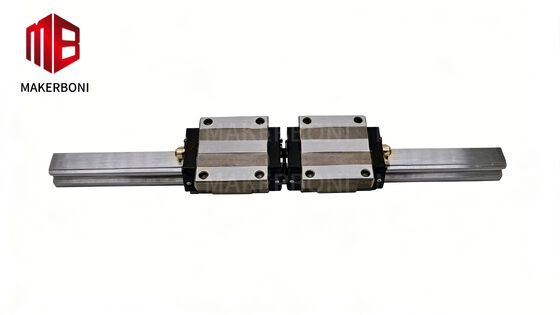

  • name

124668 OEM-Specification Prismatic Rail with Dual Slide Block Configuration for Lectra MPH9 Cutter | Hardened Alloy Steel Linear Guide

Model Number: 124668
MOQ: 1pcs
Price: 1-9999
Delivery Time: 1-7days
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
china
Highlight:

OEM-Specification Prismatic Rail

,

Dual Slide Block Linear Guide

,

Hardened Alloy Steel Slide Block Assembly

Product Description
124668 Prismatic Rail with 2 Slide Block for Lectra MPH9 Cutter | Linear Guide Replacement
Precision Linear Motion Component for Automated Fabric Cutting
In high-stakes automated fabric cutting applications, precision and stability are essential. The 124668 Prismatic Rail with 2 Slide Block is a critical replacement component engineered specifically for Lectra Vector MPH9 and MP9 cutting machines. This prismatic rail assembly ensures your cutting head moves with absolute accuracy, delivering clean, consistent cuts shift after shift.
The Backbone of Precision Cutting
The prismatic rail, also known as a linear guide, serves as the foundation for the cutting head's movement along the gantry. The 124668 prismatic rail provides a smooth, frictionless path that maintains tight tolerances even under high-speed operation. By integrating two precision slide blocks, this assembly distributes load evenly, reduces vibration, and ensures the cutting tool remains perfectly perpendicular to the material surface.
Key Features & Benefits
  • OEM-Specification Design: Manufactured to meet or exceed original equipment specifications for seamless fit and function with Lectra MPH9 and MP9 cutting machines
  • Dual Slide Block Configuration: Two precision-ground slide blocks provide enhanced load distribution and stability, reducing wear on both rail and carriage system
  • Superior Surface Hardening: Hardened and ground surface resists deformation and wear, ensuring long-term accuracy in continuous production
  • Smooth, Friction-Reduced Motion: Engineered for minimal rolling resistance, allowing smooth acceleration and deceleration without binding or chatter marks
  • Rigid Construction: Prismatic profile provides exceptional rigidity, preventing flex or deflection during high-speed directional changes
  • Direct Replacement: Designed as direct bolt-on replacement, minimizing downtime and eliminating need for modifications
Technical Specifications
Specification Value
Product Model / Part No. 124668
Compatible Machinery Lectra Vector MPH9, MP9 Cutting Machines
Product Type Prismatic Rail (Linear Guide) with 2 Slide Blocks
Application Cutting Head Carriage / Gantry Guidance System
Material Hardened Alloy Steel (Precision Ground)
Configuration Rail with Two (2) Integrated Slide Blocks
Compatible Brands Lectra (Vector MP9 / MH9 Series)
Availability IN STOCK
Lead Time 3-5 Working Days
MOQ 1 Set
Performance Advantages for Lectra MPH9 Cutters
Lectra Vector systems, including MP9 and MH9 models, require high-speed, high-precision cutting capabilities. Continuous operation leads to wear on mechanical components like linear guides. A worn rail can cause jerky movement, inaccurate cuts, increased material waste, and unnecessary strain on drive motors.
The 124668 prismatic rail with 2 slide blocks restores your machine to original factory performance. Precision-ground surfaces and hardened steel construction ensure the cutting head moves freely yet accurately, maintaining tight tolerances required for complex patterns and nested layouts.
Ready Availability: With IN STOCK status and rapid 3-5 working day dispatch, minimize machine downtime and avoid costly production delays. Suitable for textile manufacturers, automotive interior suppliers, and composites fabricators.
Compatibility Assurance
This 124668 prismatic rail is specifically engineered for:
  • Lectra Vector MP9 Cutting Machines
  • Lectra Vector MH9 Cutting Machines
Reliable Performance Solution
Don't let worn linear guides compromise production quality. The 124668 prismatic rail with 2 slide blocks is the precision-engineered solution for maintaining accuracy and reliability in your Lectra MPH9 cutter. Trust this component to keep cutting operations running smoothly for years to come.
